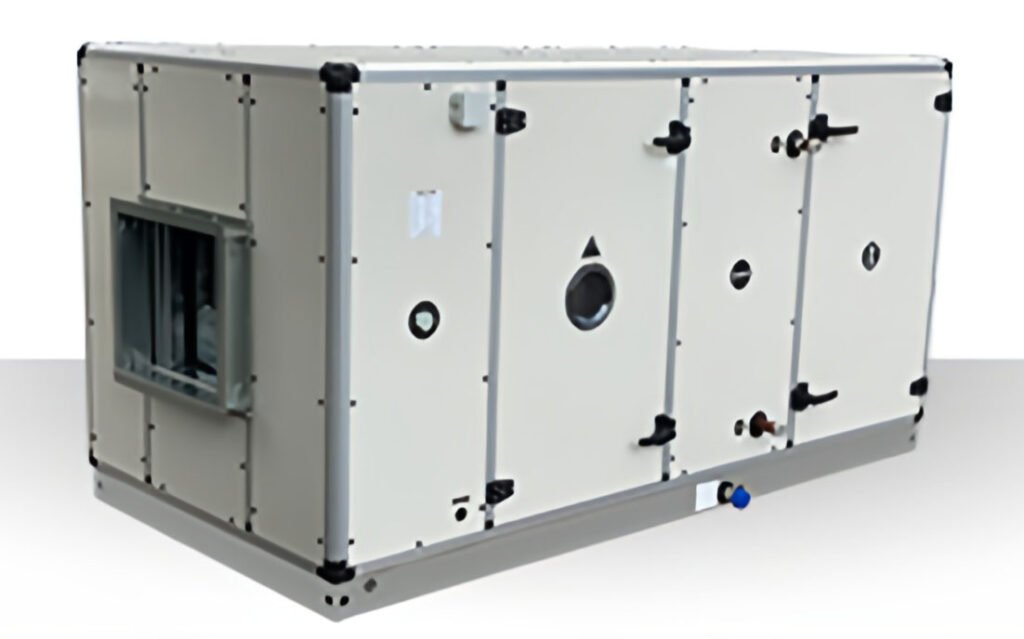

Air Handling Unit (AHU) TAH Series
Air Cold Ventilation located in Dubai, is one of the most reliable manufacturers of energy efficient centralized Air Conditioning and Kitchen Ventilation Equipment, having established a trusted name in the whole of UAE when it comes to Double Skin Air Handling Units (AHU). Our Air Handling Units are Eurovent certified with one of the best mechanical performances as per EN1886 & are provided with AMCA certified fans for superior performance and UL certified filters for higher dust holding capacity with lower pressure drop.
Key Features
- Capacity range: 600 CFM to 80000 CFM.
- Eurovent certified, TAH Series, PUF, Double Skin Air Handling Units:
- Casing mechanical strength: D1,
- Casing leakage: L1,
- Thermal transmittance: T2,
- Thermal bridge factor: TB2,
- Filter by-pass leakage: F9
- High efficiency backward curved centrifugal fans, tested and certified by AMCA in accordance to AMCA 210 for air performance and AMCA 300 for sound performance.
- IE2 / IE3, TEFC, IP55 degree of protection, Class F insulated, VFD compatible electric motors.
- AHRI certified cooling in accordance to AHRI 410-91.
- MERV 8 & MERV 13 filters for Fresh Air Handling Units.
- Specially designed stainless steel construction drain pan with all round edges, avoiding microbial growth as per ASHRAE 62-1999.
- UL certified filters selected for high dust holding capacity and lower pressure drop.
- Available in both chilled water and direct expansion system.
- Refrigerant options: R22, R410a, R407c, R134a & R404a.
Optional Features
- Custom built units to suit site requirements.
- Unit colour to match the building exteriors.
- Electro-tinned Evaporator Coils.
- Inbuilt Control Panel.
Certificates
